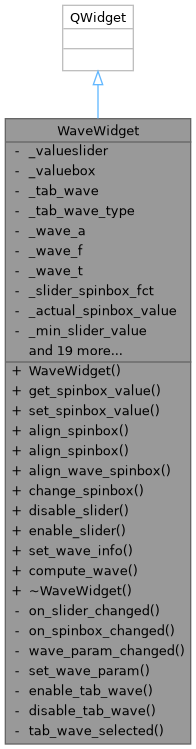

Inheritance diagram for WaveWidget:

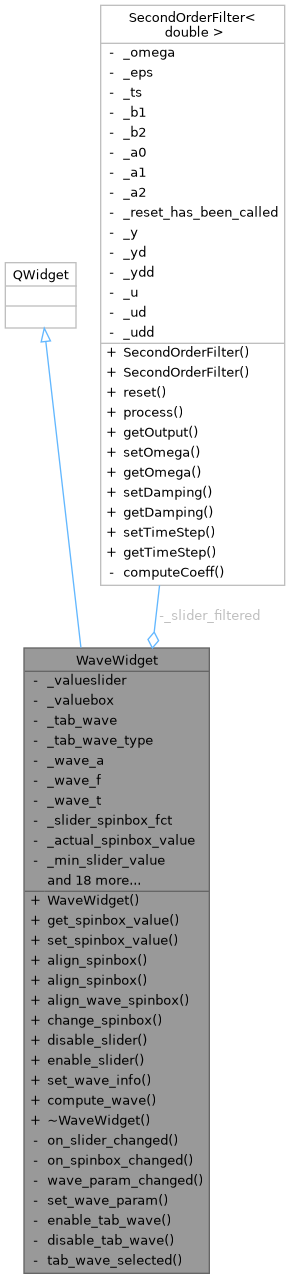

Collaboration diagram for WaveWidget:

Public Member Functions
	WaveWidget (QDoubleSpinBox valuebox, uint8_t valuebox_property, const QString &min, const QString &max, uint8_t decimal_value, const QString &unit, QWidget parent=0)

double	get_spinbox_value ()

void	set_spinbox_value (double actual_spinbox_value)

void	align_spinbox (double value)

void	align_spinbox ()

void	align_wave_spinbox ()

void	change_spinbox (double value)

void	disable_slider ()

void	enable_slider ()

bool	set_wave_info (double st, bool stopping_wave)

double	compute_wave (double t)

Private Attributes
QSlider *	_valueslider

QDoubleSpinBox *	_valuebox

QTabWidget *	_tab_wave

QTabWidget *	_tab_wave_type

QDoubleSpinBox *	_wave_a

QDoubleSpinBox *	_wave_f

QDoubleSpinBox *	_wave_t

int	_slider_spinbox_fct

double	_actual_spinbox_value

double	_min_slider_value

double	_max_slider_value

SecondOrderFilter< double >::Ptr	_slider_filtered

uint8_t	_valuebox_property

uint64_t	_trj_counter =0

bool	_init_trj

double	_trj_start_t

double	_trj_t

double	_chirp_w_start

double	_chirp_w_diff

bool	_chirp_inv =false

uint8_t	_chirp_dur_s

double	_fx

double	_x0

double	_amp

double	_freq

double	_theta

int	_wave_type

bool	_stopping_wave =false

bool	_is_wave =false

The documentation for this class was generated from the following files:

/home/runner/work/ecat-client-advr/ecat-client-advr/src/gui/ec_gui/src/component/slider/wave_widget.h
/home/runner/work/ecat-client-advr/ecat-client-advr/src/gui/ec_gui/src/component/slider/wave_widget.cpp
