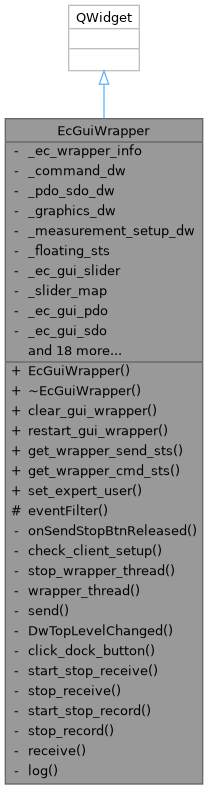

Inheritance diagram for EcGuiWrapper:

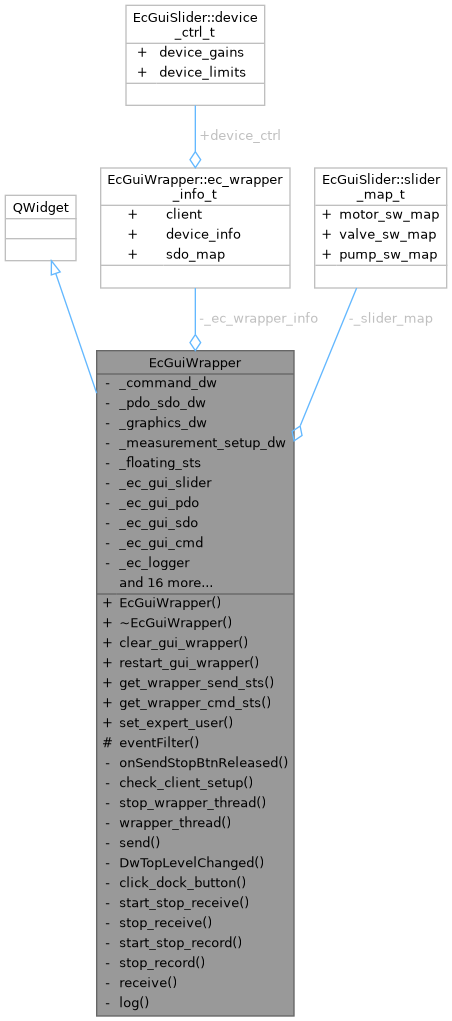

Collaboration diagram for EcGuiWrapper:

Public Types
typedef std::shared_ptr< EcGuiWrapper >	Ptr

Public Member Functions
	EcGuiWrapper (QWidget *parent=nullptr)

void	clear_gui_wrapper ()

void	restart_gui_wrapper (ec_wrapper_info_t ec_wrapper_info)

bool	get_wrapper_send_sts ()

bool	get_wrapper_cmd_sts ()

void	set_expert_user ()

Protected Member Functions
bool	eventFilter (QObject o, QEvent e)

Private Slots
void	DwTopLevelChanged (bool isFloating)

void	click_dock_button ()

void	start_stop_receive ()

void	stop_receive ()

void	start_stop_record ()

void	stop_record ()

void	receive ()

void	log ()

Private Attributes
ec_wrapper_info_t	_ec_wrapper_info

QDockWidget *	_command_dw

QDockWidget *	_pdo_sdo_dw

QDockWidget *	_graphics_dw

QDockWidget *	_measurement_setup_dw

std::map< std::string, bool >	_floating_sts

EcGuiSlider::Ptr	_ec_gui_slider

EcGuiSlider::slider_map_t	_slider_map

EcGuiPdo::Ptr	_ec_gui_pdo

EcGuiSdo::Ptr	_ec_gui_sdo

EcGuiCmd::Ptr	_ec_gui_cmd

EcLogger::Ptr	_ec_logger

std::shared_ptr< std::thread >	_ec_wrapper_thread

std::mutex	_mutex_send

std::chrono::high_resolution_clock::time_point	_loop_time

std::chrono::high_resolution_clock::time_point	_start_loop_time

int	_time_ms

bool	_run_wrapper_thread =false

bool	_send_pdo =false

QPushButton *	_send_stop_btn

QTimer *	_receive_timer

QTimer *	_log_timer

QAction *	_receive_action

QAction *	_record_action

bool	_receive_started

bool	_record_started

uint8_t	_stopping_write_counter =0

uint8_t	_max_stop_write

The documentation for this class was generated from the following files:

/home/runner/work/ecat-client-advr/ecat-client-advr/src/gui/ec_gui/src/wrapper/ec_gui_wrapper.h
/home/runner/work/ecat-client-advr/ecat-client-advr/src/gui/ec_gui/src/wrapper/ec_gui_wrapper.cpp
